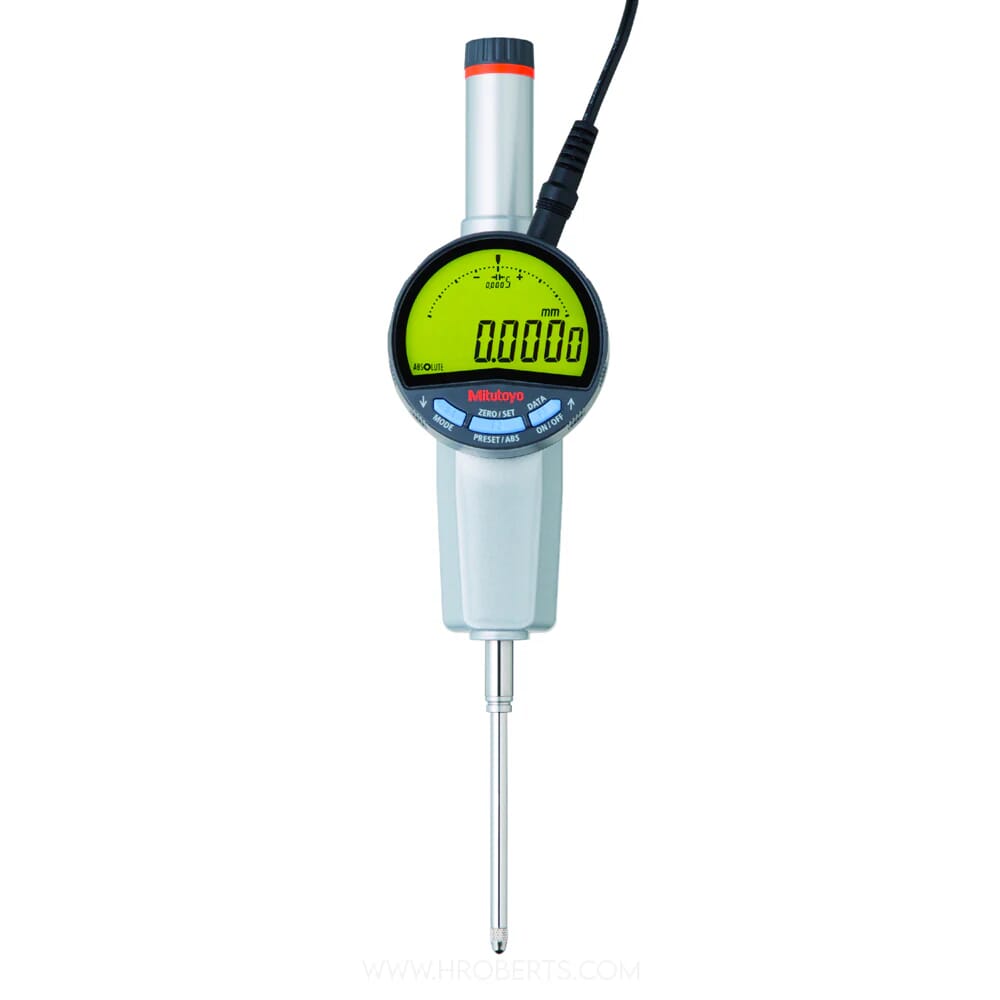

Mitutoyo Digimatic Indicator IDF 2″/50.8mm Multi Resolutions and Functions

The ABS (ABSOLUTE) sensor restores the last origin position automatically when the indicator is turned on.
High reliability by eliminating over speed errors.
Large LCD display.
Equipped with data output port that enables incorporation into measurement networking and statistical process control systems.

Code: 543-854E,
2.0″/50.8mm travel x multi resolutions ID-F Multi Function Digimatic Indicator.
For Production and Demanding Environments.
GO/NG judgement function: If a judgement result shows an out of tolerance condition, the display backlighting changes from green to red.
An analogue bar indicator has been integrated to make upper/lower limit and turnover point reading more comfortable.
External power supply type.
Power can also be supplied via the AC adapter supplied as a standard accessory.
The resolutions can be switched between 0.001mm 0.01mm or .001″, .0005″, .0001″, .00005″,.00002″.
Tolerance judging measurement is available by setting upper and lower limit values. Tolerance judgement result can be enlarged.
Calculation and locking functions

2.0″/50.8mm
