? Air Return Function ensures efficient air return for smoother operation. ? Quick Lifting enables fast lifting for improved productivity. ? Fully Welded Hydraulic Unit enhances durability and strength for long-lasting performance. ? Speed Limit Valve Included allows for precise control over lifting speed, improving safety and efficiency. ? Heat-Treated Piston Rod provides increased strength and resistance to wear. ? High-Quality #15 Hydraulic Oil is clean, transparent, and has a low-temperature freezing point of -45 Degrees Celcius, ensuring reliable operation in cold environments. ? Precision CNC Punched Parts ensure high accuracy and proper tolerance between pins and holes, making the working bed more stable during use.
? Capacity: 22.0 Ton
? Compliance: EN ISO 12100:2010, EN 1494:2000+A1:2008
? Min Height: 219mm
? Max Height: 446mm
? Ram Working Range: 124mm
? Screw Adjustment: 103mm
? Adapter Size: 21mm x 61mm x 100mm
? Adapter Diameter: 48mm
? Air Inlet Fitting: 1/4″ NPT
? Handle Length: 1165mm
? Base Dimensions (L x W): 610mm x 315mm
? Air Pressure: 100PSI – 120PSI (0.75 – 0.85 Mpa)
? Wheel Diameter: 8″

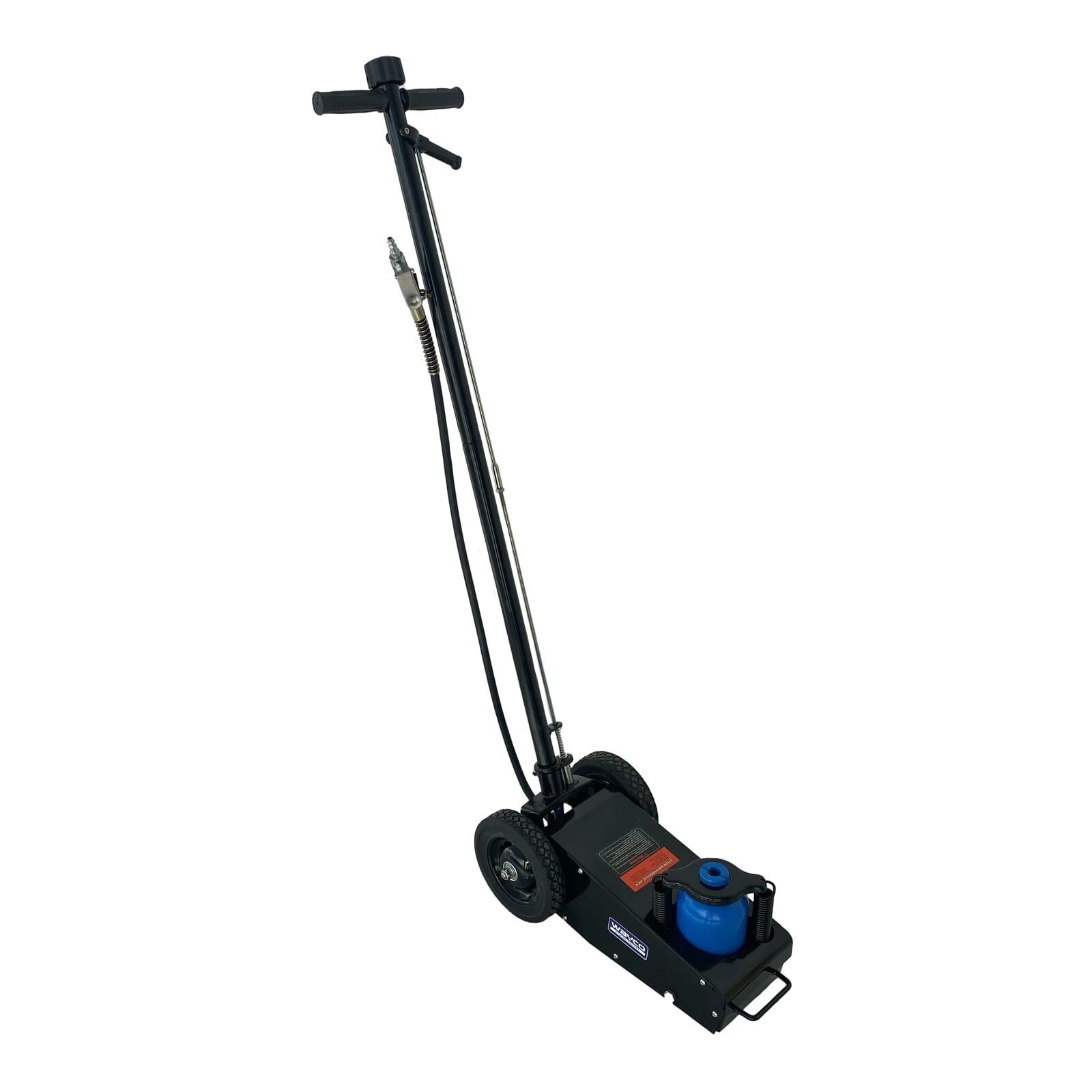

22.0 Ton x 220mm Min
