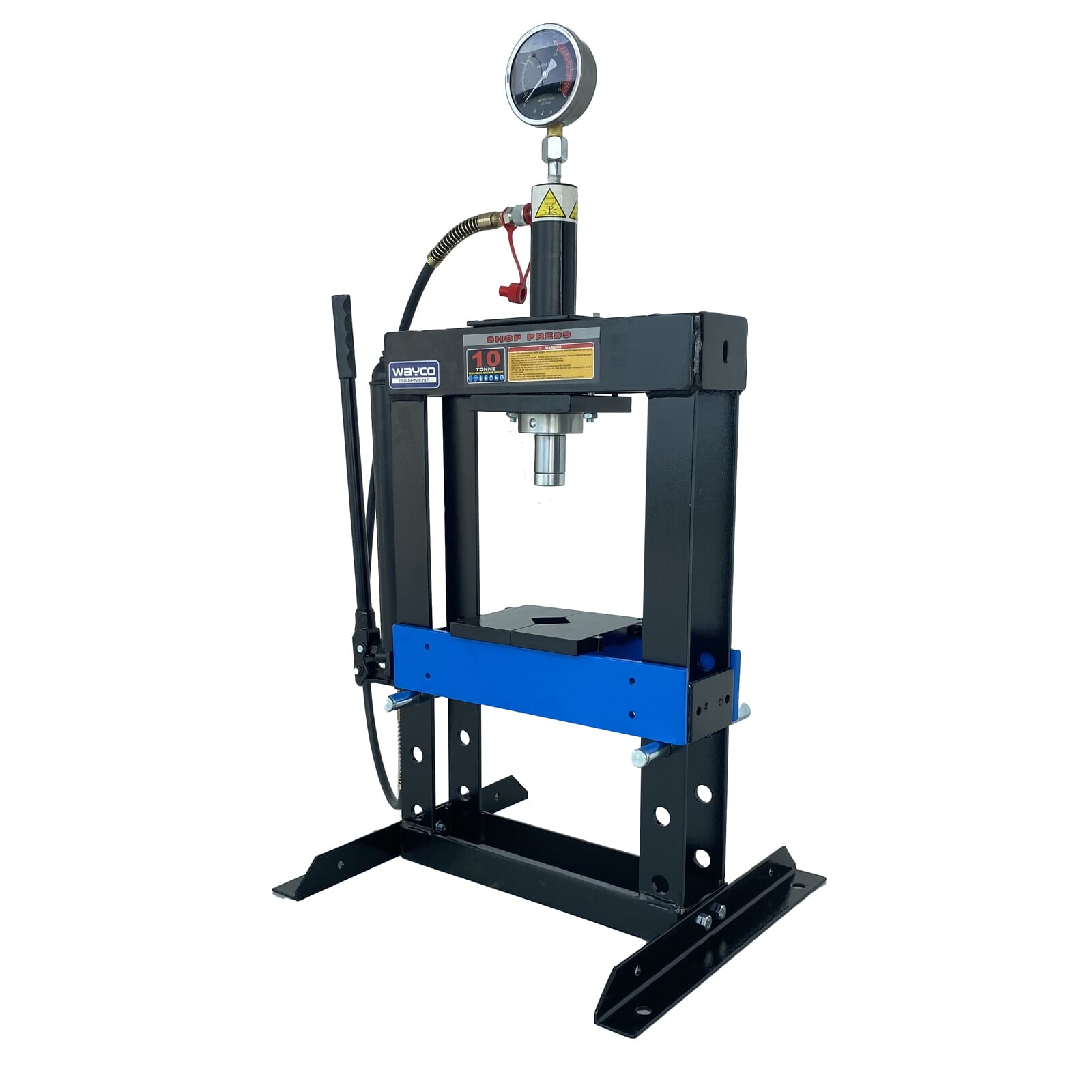

Removes and install bearings, bushings, gears, ball joints, U-joints, pulleys, etc. You”ll be able to create substantial pressure for your arbor and press-out jobs, with little effort. Can be used for electric motor and armature repair, installation and removal of pressure-fitted parts, and bending or straightening of metal. ? 135% testing for each cylinder before the assembly process. ? Heat-treated piston rod for more strength. ? Robotic welding with a single setup delivers clean, consistent weld lines and structural precision. ? High-quality #15 hydraulic oil, clean and transparent, with a -45?C low-temperature freezing point. ? Anti-shock pressure gauge with a stainless steel frame. ? No-slip design block, patented design. ? Lock pin with a limit function for enhanced safety. ? Parts punched by CNC punch machine with high precision and proper tolerance between pins and holes, ensuring a stable working bed.
? Capacity: 10 Ton
? Compliance: EN ISO 16092-1:2018, EN ISO 16092-3:2018
? Ram Stroke: 175mm
? Working Height: 364 mm
? Working Width: 336mm
? Min Working Height: 110mm
? Max Working Height: 364mm
? Overall Height: 1058mm
? Frame Width: 336mm
? Net Weight: 54kg
? Gross Weight: 56kg
10 Ton
