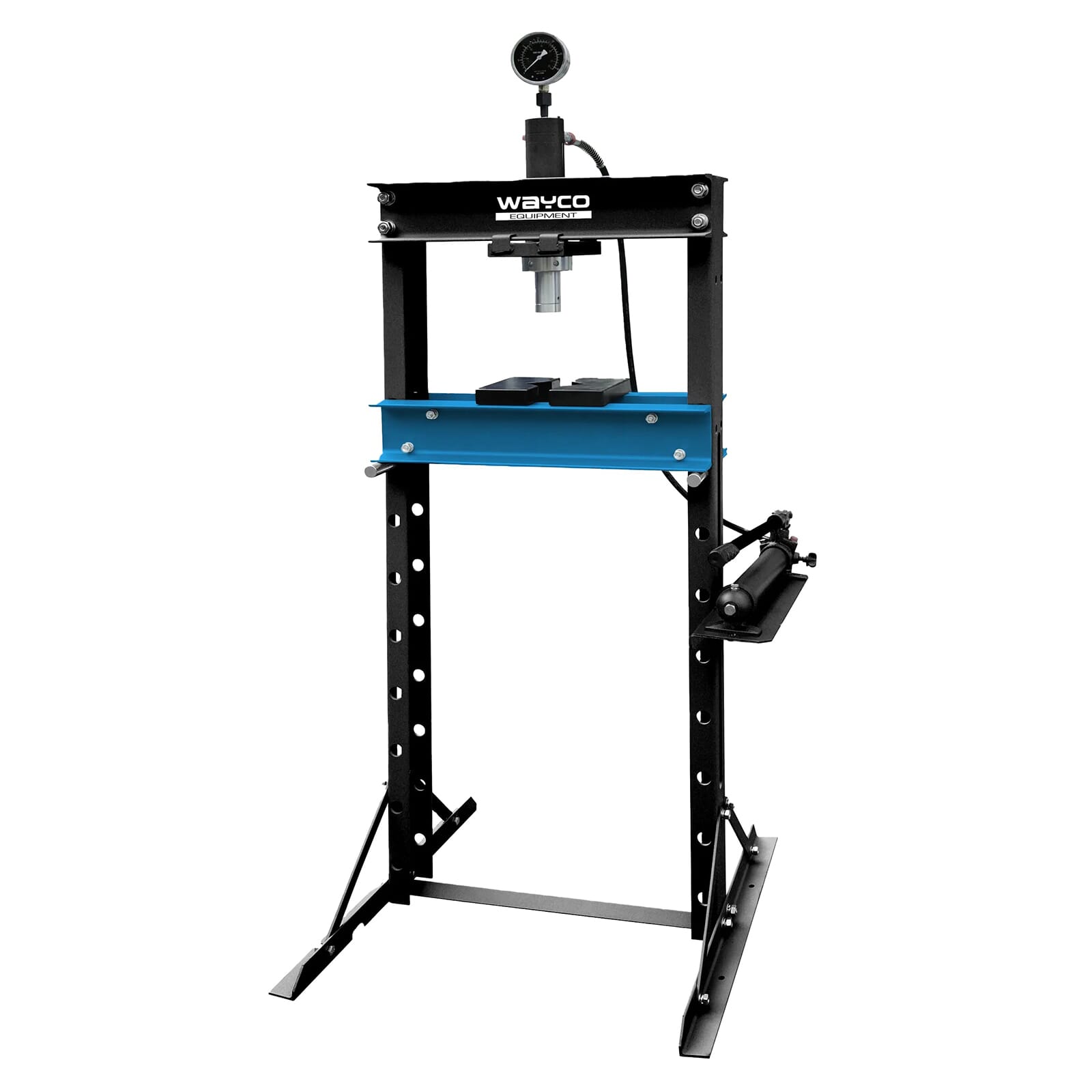

Removes and install bearings, bushings, gears, ball joints, U-joints, pulleys, etc. You”ll be able to create substantial pressure for your arbor and press-out jobs, with little effort. Can be used for electric motor and armature repair, installation and removal of pressure-fitted parts, and bending or straightening of metal. ? 135% testing for each cylinder before the assembly process. ? Heat-treated piston rod for more strength. ? Robot welding with a single setup, ensuring a beautiful weld line. ? High-quality #15 hydraulic oil, clean and transparent, with a -45?C low-temperature freezing point. ? Anti-shock pressure gauge with a stainless steel frame. ? No-slip design block, patented by Handijack. ? Lock pin with a limit function for enhanced safety. ? Parts punched by CNC punch machine with high precision and proper tolerance between pins and holes, ensuring a stable working bed.
? Capacity: 20 Ton
? Ram Stroke: 185mm
? Length: 745mm
? Width: 700mm
? Total Height: 1778mm
? Frame Width: 542mm
? Min Working Height: 25mm
? Max Working Height: 985mm
? Net Weight: 78.5 kg
? Gross Weight: 80 kg
20 Ton
